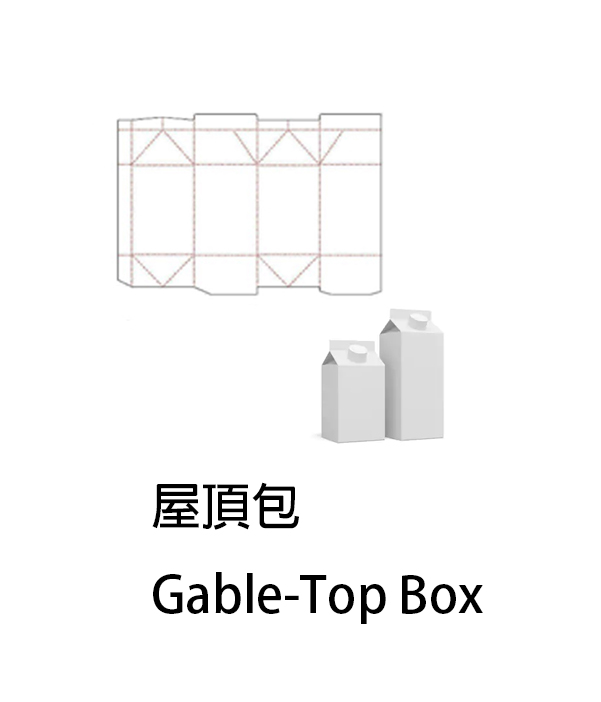

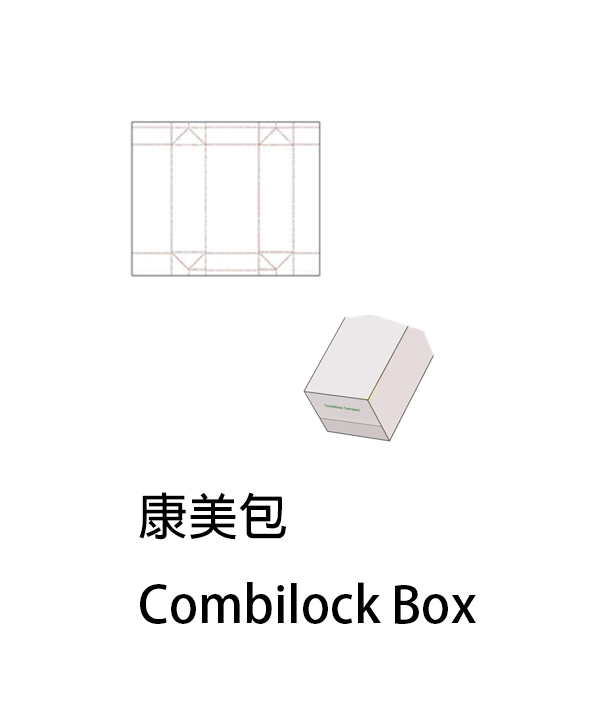

Basic Pattern: Gable-top box, Combilock box (Brick Box).

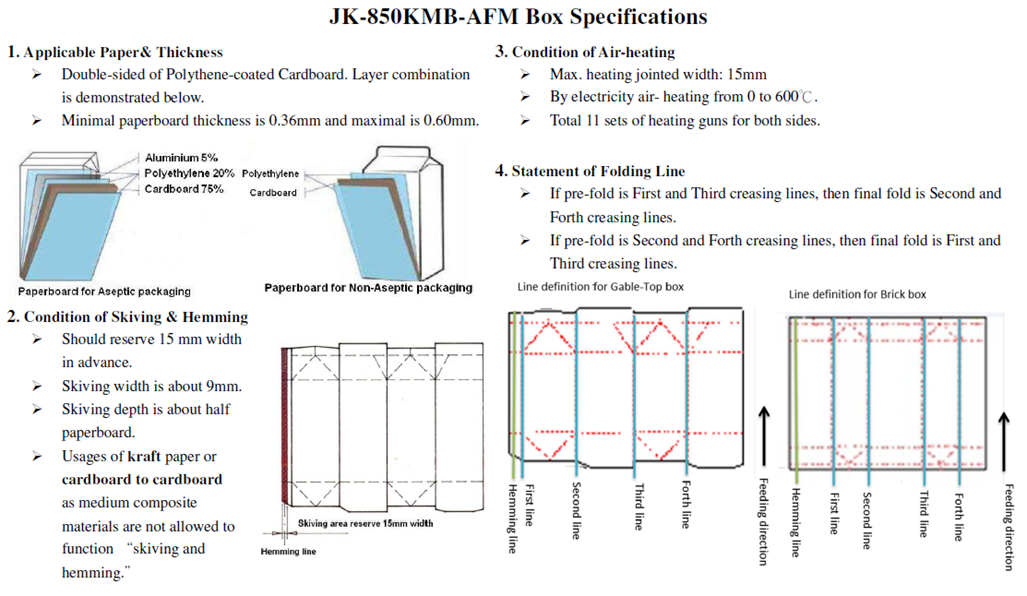

Material Type: Double-sided of Polythene-coated Cardboard.

Paper Thickness: Min.0.36mm, Max.0.60mm

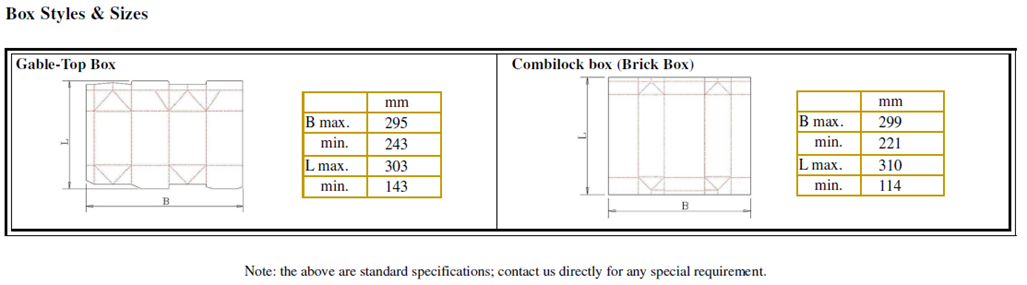

Box Expanded Width Size: 221mm≦Combilock ≦299mm

243mm≦Gable-Top≦295mm

Box Expanded Length Size:114mm≦Combilock≦310mm

143mm≦Gable-Top≦303mm

Sealing Place: Side sealing & Middle sealing.

Heating System: Electric heating 0~600℃

Manual Carrier Movement Operation        Machine Speed: Max. 280 M/min

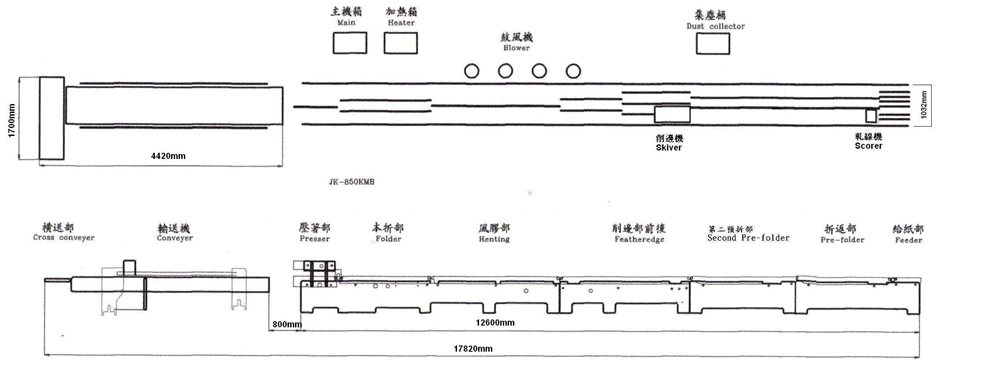

Machine Dimension: 17820*1032*1700mm

 (Refer to catalog / attached document for further details.)
