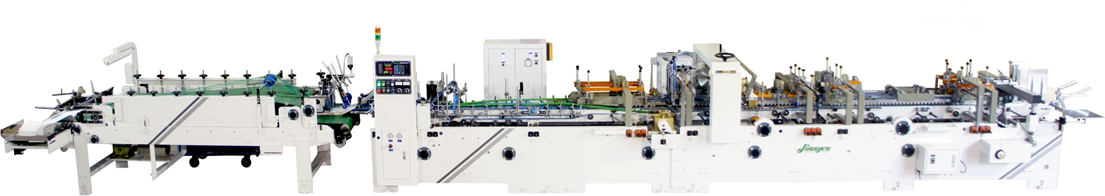

Carton Automatic Folder Gluer Machine

JK-750PC Automatic Folder Gluer Machine

JK-750PC Automatic Folder Gluer Machine
JK-750PC Automatic Folder Gluer Machine
JK-750PC Automatic Folder Gluer Machine
JK-750PC Automatic Folder Gluer Machine

JK-750PC Automatic Folder Gluer Machine

Materials: Cardboard

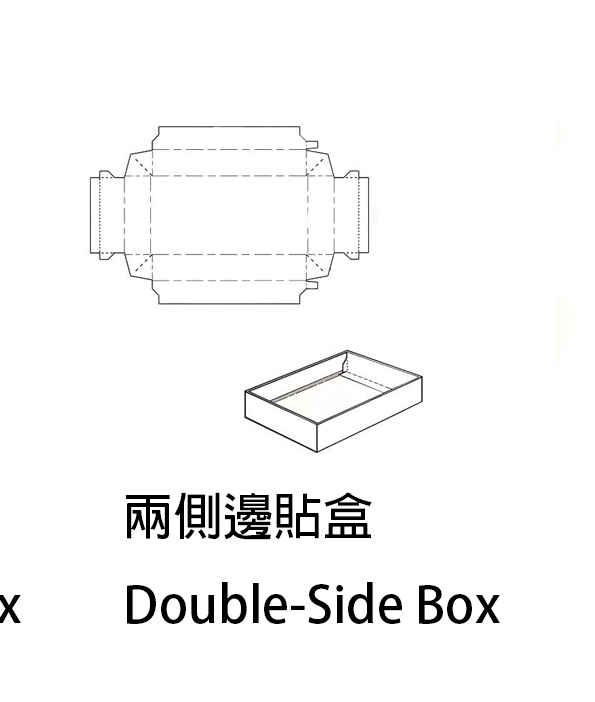

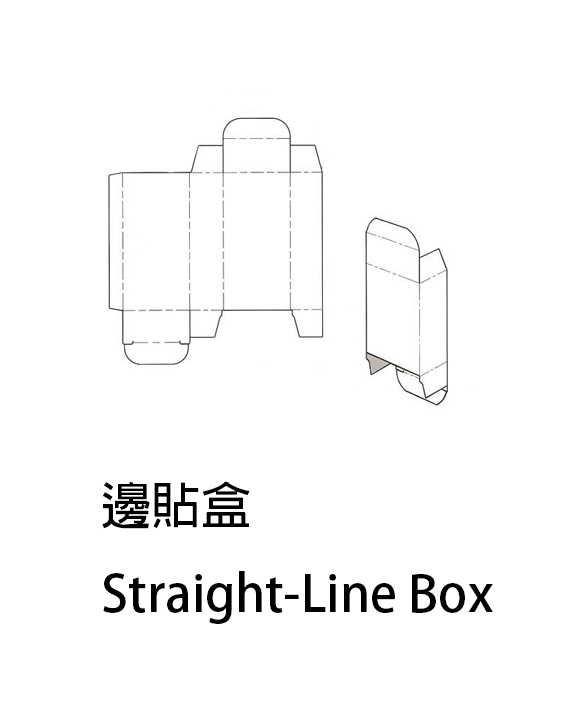

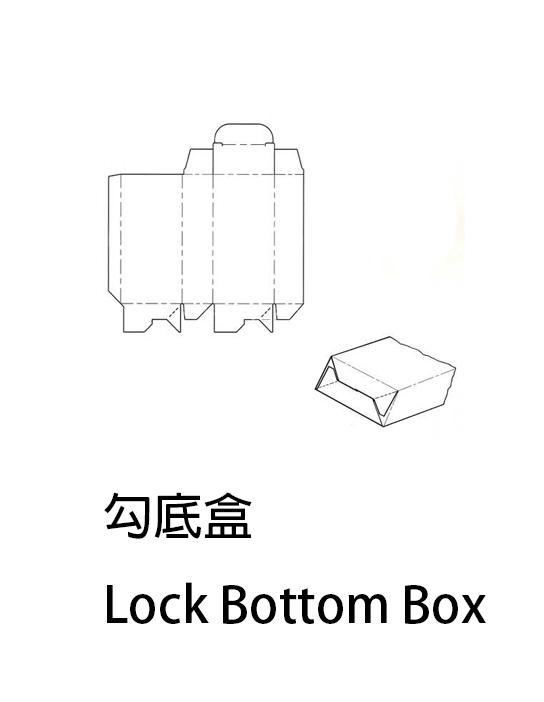

General box type: Lock-Bottom BoxDouble-Side BoxStraight-Line Box

Basic Pattern: Straight-Line, Double-Side, Lock-Bottom boxes

Material Type: Cardboard(250-550gsm)

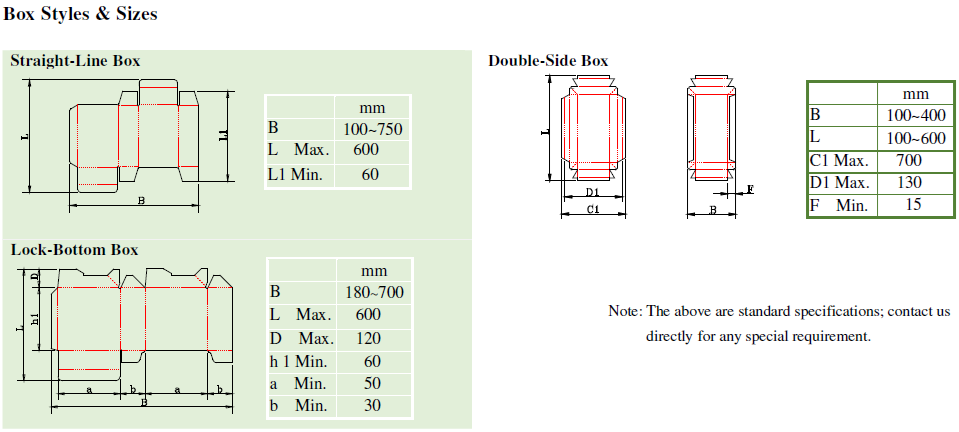

Box Expanded Size: Max. W700 x L600mm, Min. W100 x L60mm

Manual Carrier Movement Operation     Speed: Max. 300 M/min

(Refer to catalog / attached document for further details.)




Material Type: Cardboard(250-550gsm)
Speed:Max. 300 M/min
Required Power: 10.5KW
Glue:Emulsion type (Fluid)
Net Weight: 4,500KG















Our machine with feature below,


1.Using high precision parts, more durable.
2.All parts output under the rigid quality management.
3.Efficient production with high speed output.
4.Timely respond to customer, properly handle the after service.
5.Capable to fold and glue the general box, such as straight line box, lock bottom box, double-side box.
6.Left and right lower gluer is easy to separate for cleaning.
7.Provide customize adjustment according to customer’s request.
8.Using accessories from international well-known brand, with high price–performance ratio.
9.Using high efficiency inverter motor, save energy.
10.Equipped with wireless remote control, more convenient on operation.
11.Independent conveyor control, switch between responsive movement or manual adjust movement.
12.The feeder is noiseless while feeding blanks as well as time-saving for changing different blanks.
13.Feeder Section features independent vibrator and multiple feeding gates, separating blanks for precise feeding.
14.Using prepared bottom hook devices to produce boxes more efficiently.
15.The unique design and structure make folding work extremely accurately without skewing the blanks. The whole machine remains still and unshaken while operated at high speed.
16.Independent stacker carriers indicate multiple color boxes stacking perfectly by adjusting different angle and length of carriers.
17.Equipped with counter & auto emergency stop detector.
18.Independent structure, adjusted according to working style or space.
19.With white body paint, it’s elegant on vision.
20.Humanize monitor screen on stacking.
