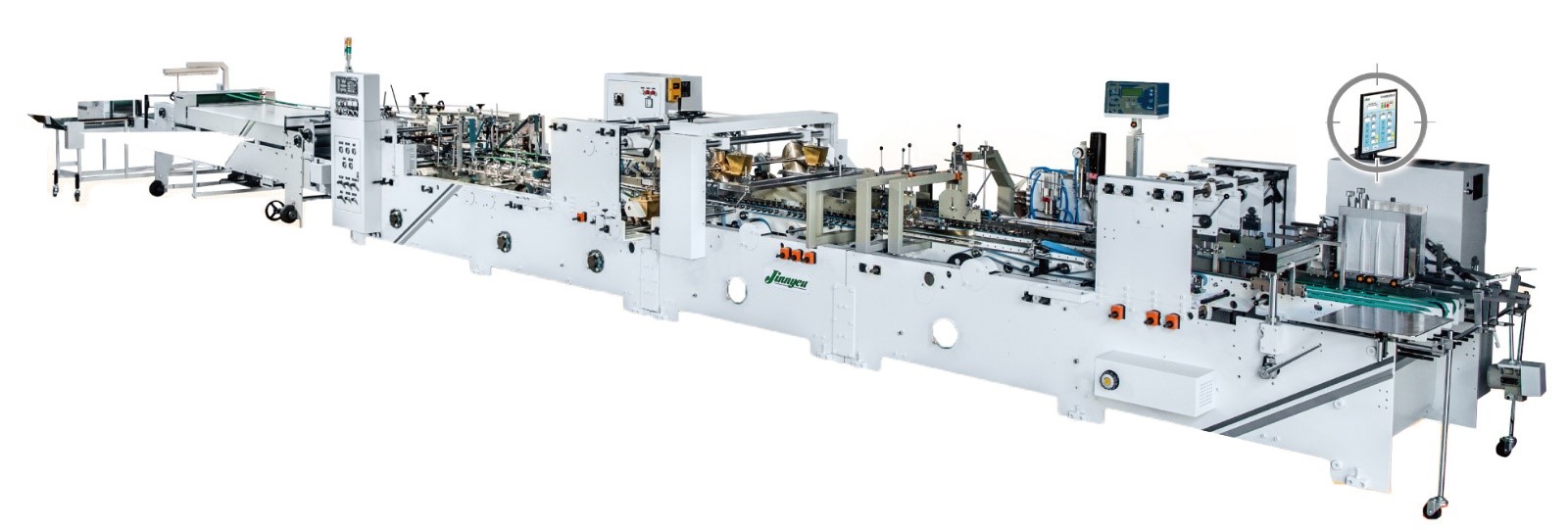

JK-1000PCF 4/6 corner Automatic Folder Gluer Machine
General box type:

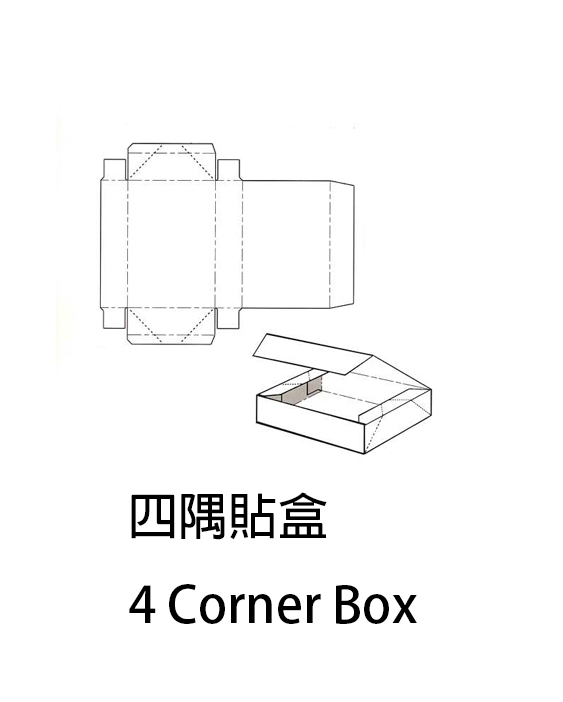

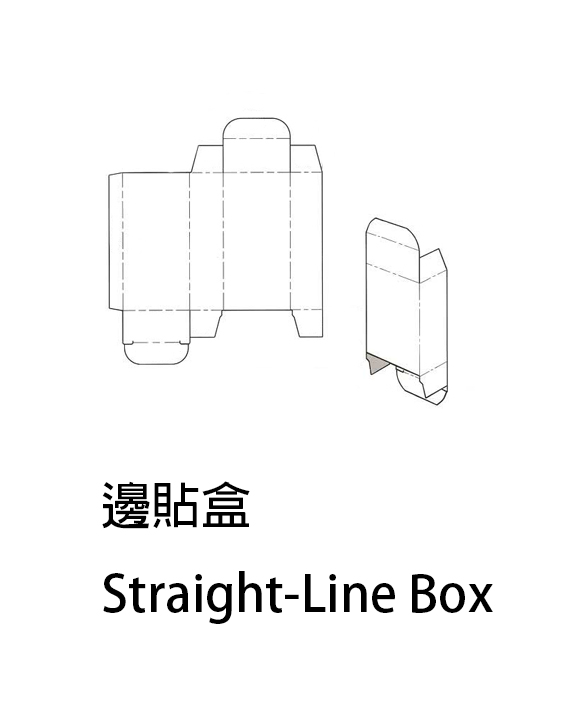

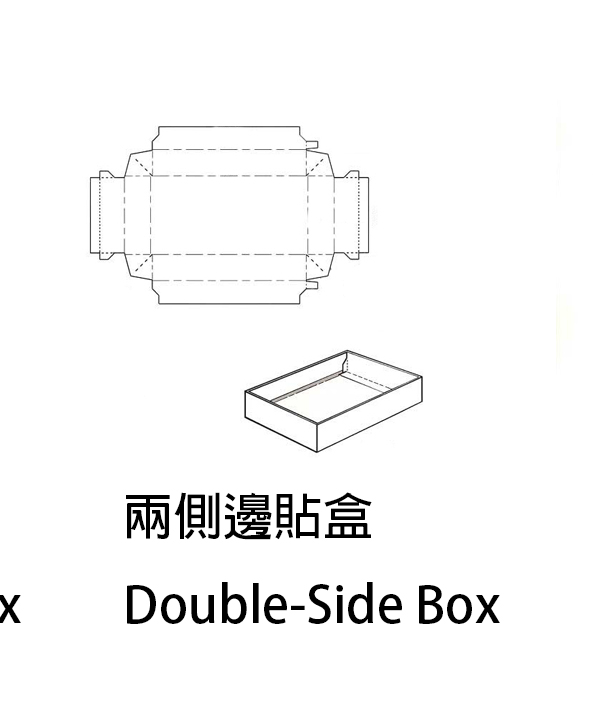

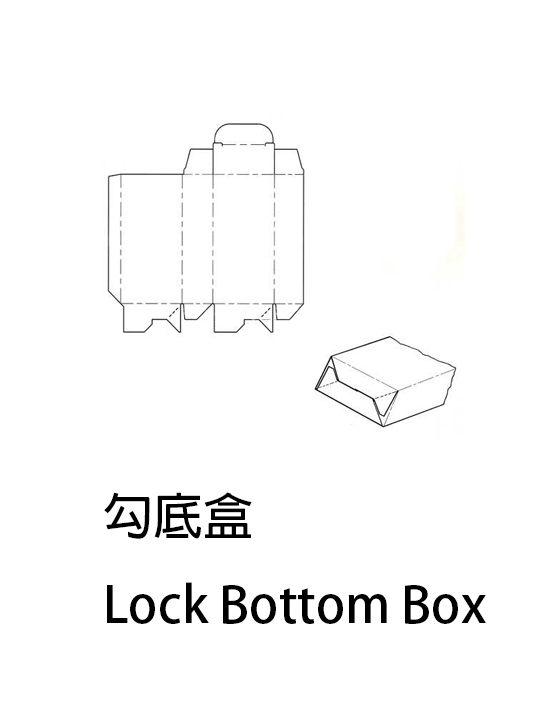

Straight-Line BoxLock-Bottom BoxDouble-Side Box4 Corner Box6 Corner Box
Basic Pattern: Straight-Line, Double-Side, Lock-Bottom Boxes
Material Type: Cardboard, E-flute, B-flute(horizontal) corrugated paper

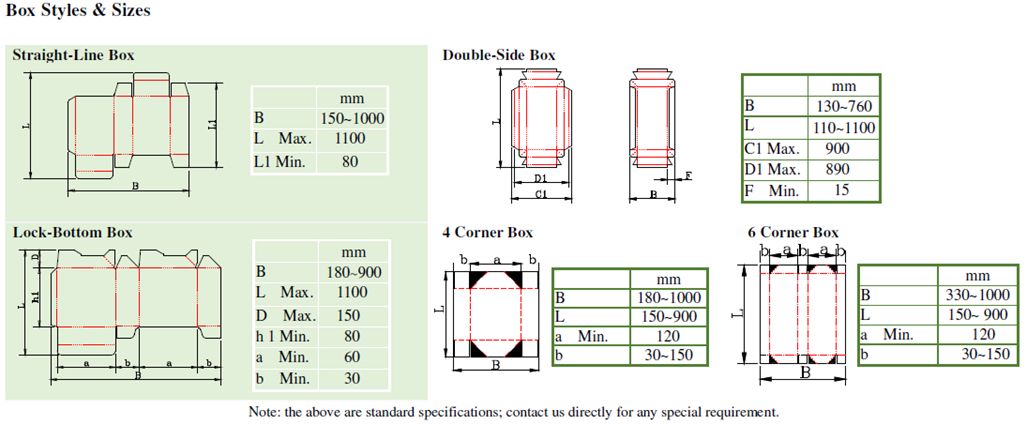

Box Expanded Size: Max. W1000 x L1100mm, Min. W150 x L80mm
Manual Carrier Movement Operation Speed: Max. 300 M/min
(Refer to catalog / attached document for further details.)
4 & 6 Corner Device
Basic Pattern: 4 Corner, 6 Corner Boxes
Servo backfolding system driven by” Industrial Personal Computer”.
Vacuum suction system and holed feeding belts.
Enter- Equalizer to facilitate transferring into conveyor section.
2 pieces pressing belt mounted on upper belt of conveyor section.
Material Type: Cardboard, E-flute, B-flute (horizontal) corrugated paper
Speed:Max. 300 M/min
Required Power: 25KW
Glue:Emulsion type (Fluid)
Net Weight: 6,000KG
Our machine with features below,
1.Using high precision parts, more durable.
2.All parts output under the rigid quality management.
3.Efficient production with high speed output.
4.Timely respond to customer, properly handle the after service.
5.Capable to fold and glue the general box, such as straight line box, lock bottom box, double-side box, 4 corner box, 6 corner box.
6.Capable to fold several type of material, such as cardboard, E-flute, B-flute(horizontal) corrugated paper.
7.Provide customize adjustment according to customer’s request.
8.Using accessories from international well-known brand, with high price–performance ratio.
9.Using high efficiency inverter motor, save energy.
10.Equipped with wireless remote control, more convenient on operation.
11.Independent conveyor control, switch between responsive movement or manual adjust movement.
12.The feeder is noiseless while feeding blanks as well as time-saving for changing different blanks.
13.Feeder Section features independent vibrator and multiple feeding gates, separating blanks for precise feeding.
14.Using prepared bottom hook devices to produce boxes more efficiently.
15.The unique design and structure make folding work extremely accurately without skewing the blanks. The whole machine remains still and unshaken while operated at high speed.
16.Independent stacker carriers indicate multiple color boxes stacking perfectly by adjusting different angle and length of carriers.
17.Equipped with counter & auto emergency stop detector.
18.Independent structure, adjusted according to working style or space.
19.With white body paint, it’s elegant on vision.
20.Humanize monitor screen on stacking.
21.Left and right lower gluer is easy to separate for cleaning.
